A MAP (Manifold Absolute Pressure) sensor is a crucial component in an engine’s electronic control system. Its primary function is to measure the intake manifold’s absolute pressure, providing vital information to the engine control unit (ECU) for optimizing fuel injection and ignition timing.
This information is vital for maintaining proper engine performance, improving fuel efficiency, and reducing emissions. You can find DTCs with an OBD2 Scanner for DIY to determine it. Overall, the MAP sensor plays a critical role in ensuring the engine operates optimally under varying driving conditions.
How a MAP Sensor Works

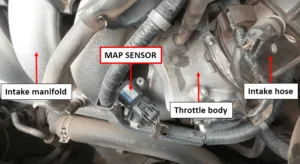

A Manifold Absolute Pressure (MAP) sensor is an essential component in modern engine management systems. It works by measuring the intake manifold’s absolute pressure, providing crucial information about the engine’s load and operating conditions. The MAP sensor typically consists of a pressure-sensitive diaphragm that changes its position according to the pressure variations in the intake manifold.
As the engine operates, the pressure inside the manifold changes, and the MAP sensor detects these changes and converts them into electrical signals. The sensor’s output is then transmitted to the engine control unit (ECU), which uses this data to calculate the correct air-fuel mixture and optimize ignition timing. By accurately monitoring the intake manifold pressure, the MAP sensor helps ensure efficient engine performance, fuel economy, and emission control..
What are the symptoms of a bad MAP sensor?
The MAP (Manifold Absolute Pressure) sensor is an important component in the engine management system of a vehicle. It measures the pressure inside the intake manifold and provides this information to the engine control unit (ECU) to calculate the appropriate fuel delivery and ignition timing. When a MAP sensor malfunctions or goes bad, it can lead to various symptoms. Here are some common symptoms of a faulty MAP sensor:
- Check Engine Light (CEL): A malfunctioning MAP sensor often triggers the check engine light on the vehicle’s dashboard. The ECU detects irregular readings or signals from the sensor and illuminates the CEL to indicate a problem.
- Rough Idle: A bad MAP sensor can cause the engine to experience a rough or unstable idle. You may notice that the engine idles too high or too low, and it may even fluctuate erratically.
3.Poor Acceleration and Engine Performance: The MAP sensor plays a crucial role in determining the correct air-fuel mixture for optimal combustion. If the sensor is faulty, it can result in a lean or rich fuel mixture, leading to decreased acceleration, reduced power, and overall poor engine performance.
4.Stalling or Hesitation: In some cases, a malfunctioning MAP sensor can cause the engine to stall or hesitate during acceleration. This happens when the incorrect air-fuel mixture is supplied to the combustion chambers, affecting the engine’s smooth operation.
5.Increased Fuel Consumption: A faulty MAP sensor can cause the engine to receive inaccurate readings about the air intake, leading to an improper fuel mixture. This can result in increased fuel consumption and reduced fuel efficiency.
6.Black Smoke from Exhaust: If the MAP sensor fails to provide accurate readings, it can cause the engine to run rich, leading to excessive fuel being injected into the combustion chambers. This can result in the production of black smoke from the exhaust.
It’s worth noting that while these symptoms are commonly associated with a bad MAP sensor, they can also be caused by other issues in the engine or fuel system. If you suspect a problem with your MAP sensor, it is recommended to have a professional mechanic diagnose the issue for an accurate assessment and proper repair.
How can I test my MAP sensor?
To test your MAP (Manifold Absolute Pressure) sensor, you can follow a few steps. Firstly, locate the sensor on your vehicle’s intake manifold or air intake pipe. Then, disconnect the electrical connector attached to the sensor. With the engine off, use a multimeter set to the voltage or resistance mode and connect the multimeter leads to the appropriate pins of the sensor’s electrical connector.
Consult a repair manual or online resources for the specific voltage or resistance values your MAP sensor should provide at different engine conditions. Start the engine and observe the readings on the multimeter, comparing them to the specified values.
If the readings do not match the expected values or fluctuate irregularly, it could indicate a faulty MAP sensor. Additionally, visually inspect the sensor for any signs of damage or corrosion. Remember to consult your vehicle’s manual and exercise caution while performing tests on your vehicle’s electrical components.
How to diagnose Bad MAP Sensor with scan tool?
To diagnose a MAP (Manifold Absolute Pressure) sensor using a scan tool, follow these steps:
1.Connect the Scan Tool: Plug the scan tool into the OBD-II (On-Board Diagnostics) port of your vehicle. The OBD-II port is usually located under the dashboard on the driver’s side.
2.Power on the Scan Tool: Turn on the ignition of your vehicle without starting the engine. Then, power on the scan tool by following the instructions provided with the tool.
3.Access the Diagnostic Menu: Use the buttons or touchscreen on the scan tool to navigate through the menu options and select the diagnostic functions. Look for the option related to “Engine” or “Engine Control Module (ECM).”
4.Scan for Trouble Codes: Select the option to scan for trouble codes. The scan tool will communicate with the vehicle’s ECM and retrieve any stored diagnostic trouble codes (DTCs). DTCs are specific codes that indicate potential issues with various components, including the MAP sensor.
5.Check for MAP Sensor Codes: Look for any codes related to the MAP sensor in the list of retrieved DTCs. Common codes associated with MAP sensor problems include P0106 (MAP sensor performance), P0107 (MAP sensor circuit low input), P0108 (Symptoms Of Bad MAP Sensor circuit high input), and P0109 (MAP sensor circuit intermittent).
6.Interpret the Data: If there are no specific MAP sensor codes, you can still examine the live data stream from the scan tool. Look for parameters related to manifold pressure or MAP sensor voltage. These values should change as you rev the engine or apply load to the vehicle.
7.Replace or Repair the MAP Sensor: If the scan tool data, trouble codes, and additional tests confirm a faulty MAP sensor, it is recommended to replace the sensor. Consult the vehicle’s service manual for specific instructions on how to remove and install the MAP sensor correctly.
Remember, diagnosing vehicle issues can be complex, and it’s always a good idea to consult a professional mechanic or refer to the vehicle’s service manual for accurate information and guidance.
In conclusion, recognizing the symptoms of a faulty MAP (Manifold Absolute Pressure) sensor is crucial for diagnosing and addressing potential engine issues. Symptoms such as rough idling, decreased fuel efficiency, and engine hesitation can indicate a malfunctioning Symptoms Of Bad MAP Sensor.
Troubleshooting a bad MAP sensor involves inspecting the sensor for physical damage or contamination, checking the vacuum lines, and testing the electrical connections. Additionally, a simple trick to confirm a faulty MAP sensor is to tap on it gently while the engine is running; if the engine’s performance changes, it’s likely a sign of a failing sensor. Timely detection and repair of a bad MAP sensor can help maintain optimal engine performance and prevent further damage.
